LP-500 Series Power Supply

LP-500 Series Power Supply

LP-500 Series Power Supply

Available Voucher :

Technical parameter

  Model                                Specification LP-500W-12 LP-500W-24 LP-500W-48
Output DC Output Voltage 12V 24V 48V
Output Voltage tolerance ± 1% ± 1% ± 1%
Rated Output Current 37.5A 20.8A  10.4A
Output Current Range 0-37.5A 0-20.8A 0-10.4A
DC Output Power 450W 499.2W 499.2W
Tripple and Noise 120mVp-p 240mVp-p 300mVp-p
Adjustable Range for DC Voltage 10.5-14V  20.5-26.5V 44.5-51V
Input AC Input Voltage Range 85-132VAC/176-264VAC selected by switch or 248-373VDC 47~63Hz;
AC input current 9.5A/115VAC  4.8A/230VAC
Efficiency 83% 85% 86%
AC Inrush Current Cold-Start Current: 15A/115V, 30A/230V
Leakage Current <2mA/240VAC
Protection charateristic Overload Protection 110%-150%
Protection mode: cut off output and reset automatically
Over Voltage Protection 14-18V 27-30V 51-54V
Protection mode: cut off output and reset automatically
Environment Work Temperature Humidity -10°C~+50°C , 20%~90%RH
Storage Temperature Humidity `-20°C~+85°C, 10%~95%RH
Shock resistance 10~500Hz, 2G 10min,/1cycle,duration:60min each shaft
Safety Voltage withstand capacity Input-output:2KVAC  Input-earth:1.5KVAC   Output-earth:0.5KVAC
Insulation resistance Input-output, Input-earth ,Output-earth:100M Ohms/500VDC
Executive Stantand Safety Standards CE
EMC Standards Design refer to FCC part 15J Conduction Class B
Others Weight  0.8KGS
Package 18pcs/ctn 44.5*26.5*31
size  100*90*110(L*W*H)
Notes 1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25°C.                                           2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope.                                                                                                                                                          3.The tolerance is the sum of setting voltage error , voltage and current regulation factor.

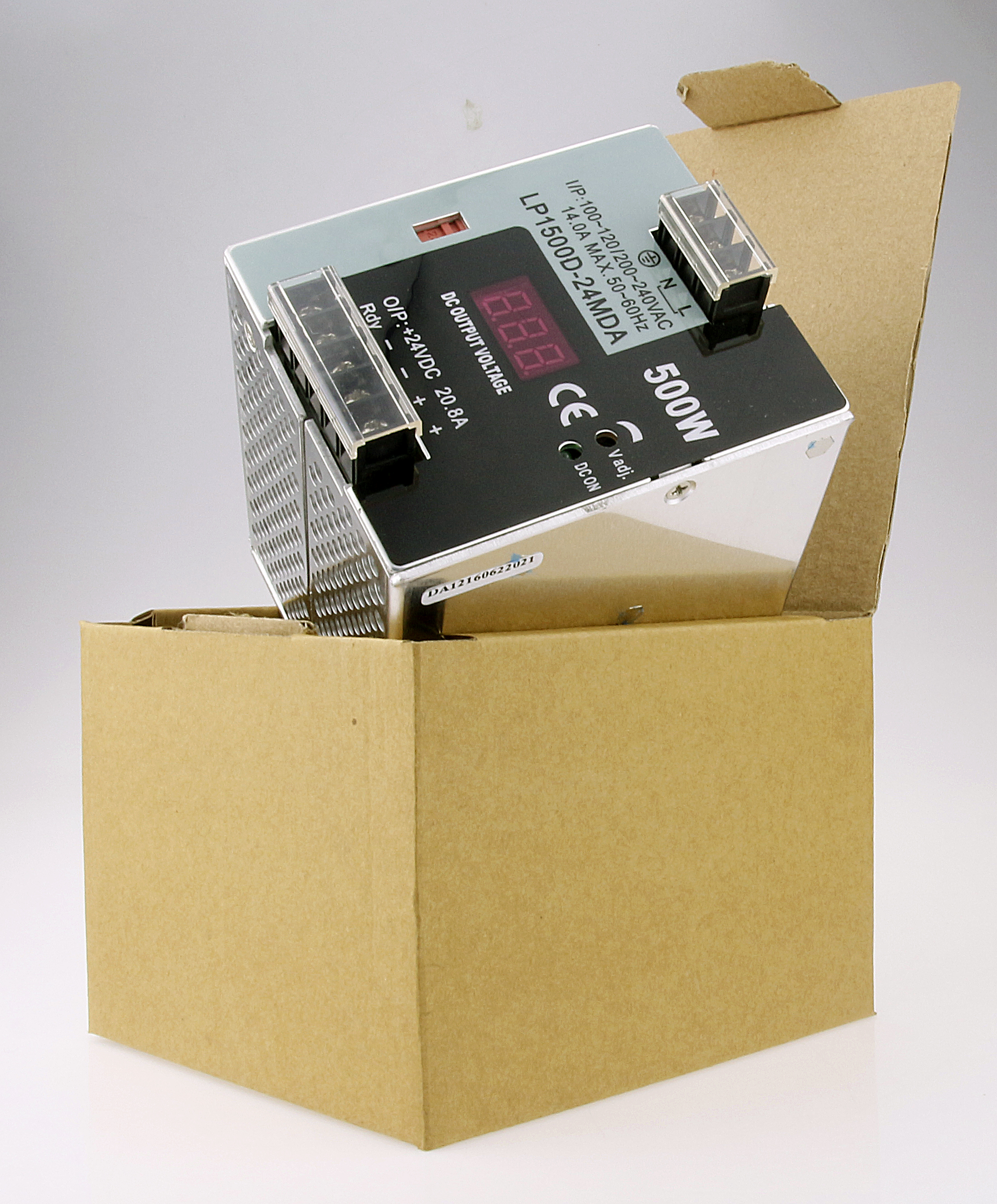

More pictures
