Technical parameter

Rating(In) AC7a Control voltage (VAC)(50Hz) Contact Width in 9mm modules
16A 2P 220 2NO 2
230...240 2NO 2
220 1NO+1NC 2
230...240 1NO+1NC 2



Connection


 Power circuit
Voltage rating (Ue)   1P, 2P
                                     3P, 4P
Frequency
 Endurance(O-C)
Electrical
Maximum number of switching operation a day
 Additional characteristics
Insulation voltage (Ui)
Pollution degree
Rated impulse withstand voltage(Uimp)
Degree of protection
Operating temperature
Storage temperature
Tropicalization (IEC 60068-1)
ELSV compliance(Extra Low Safety Voltage) for 12/24/48vac versions
The product control conforms to the SELV(safety extra low voltage) requirements



Consumption

  Raring(In) Control voltage (VAC)(50Hz) Consumption Max.power
AC7a Holding Inrush
2P 16A 12 3.8VA 15VA 1.3w
24 3.8VA 15VA 1.3w
48 3.8VA 15VA 1.3w
220 3.8VA 15VA 1.3w
230...240 2.7VA 9.2VA 1.2w
12 3.8VA 15VA 1.3W
14 3.8VA 15VA 1.3W
220 3.8VA 15VA 1.3W
230...240 2.7VA 9.2VA 1.2W



Dimension

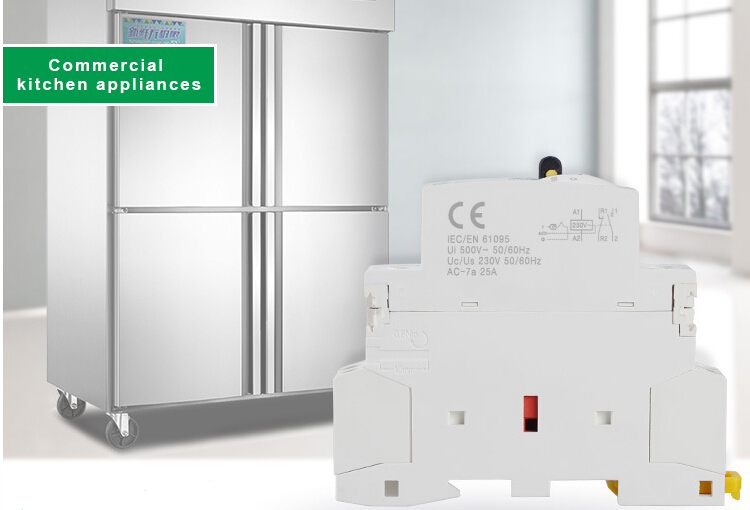

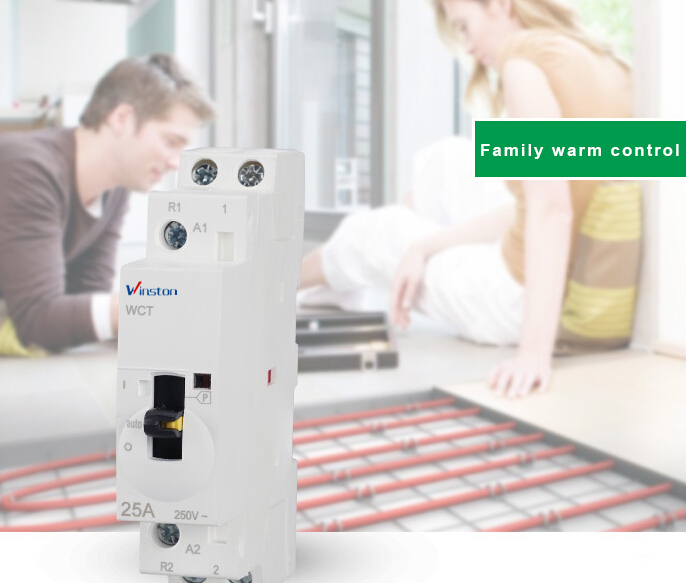

Application
